In stock - ready to ship
International shipping is available
Applications
- Insulation plaster;
- Spatter coat;
- Dry clay plaster;
- Wet-plastic clay plaster;
- Screed 60 l;
- Self-levelling floors;
- Site-mixed mortars.
Max. Grain Size
3 mm
Working Pressure
15 bar
Output at 200 rpm
18 l/min
Output at 400 rpm
36 l/min
Rubber Hardness
Hard
Connection Type
D
Rotation Direction
Clockwise
Rotor Material
Steel or cast iron (depending on version)
Stator Material
Steel housing + rubber inner lining
Color Stator
Yellow
G 4; RITMO XL; SWING L
Product description
Working pair for stable material feed

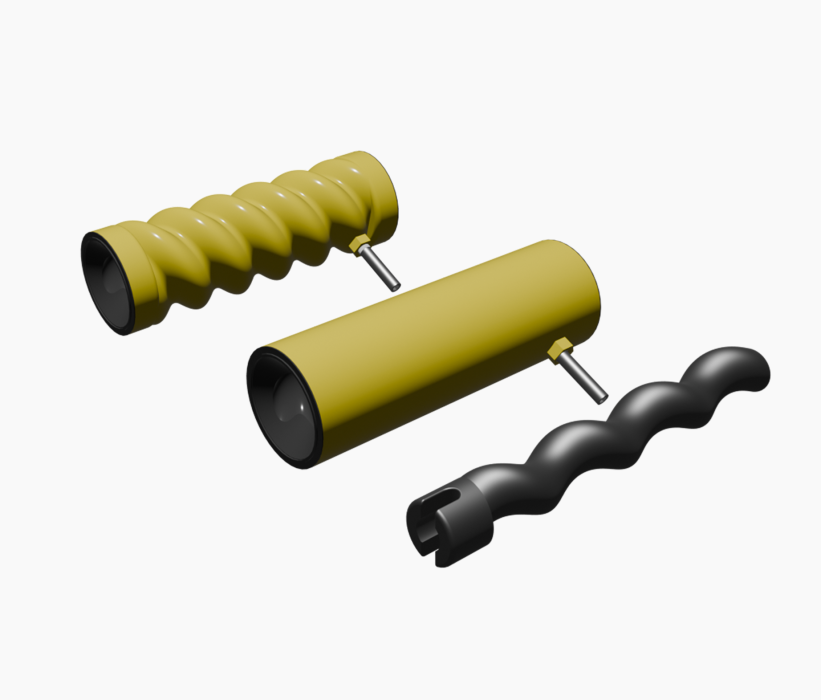

Screw pair is used in plastering equipment for uniform mortar feed and maintaining working pressure. The kit is suitable for replacing worn components, restoring equipment performance and scheduled maintenance.
Equipment compatibility
The kit is used in plastering machines and mortar pumps.
For different compositions
Suitable for gypsum, lime-cement, adhesive, reinforcing and finishing mortars.
Controlled productivity
For repair and maintenance
The kit is suitable for service replacement, equipment repair and regular maintenance.
How to order
We will select a kit for your equipment.
The kit can be ordered for scheduled replacement, plastering machine repair or restoration of stable material feed. If the exact model is unknown, we can check compatibility by photo, part marking or equipment model.
By equipment model
Specify the model of the plastering machine or mortar pump so we can check the kit compatibility.
By photo of the part
If there is no marking, you can send a photo of the current rotor, stator or complete kit.
By specifications
We can process the request based on parameters: grain size, pressure, productivity and material type.
For regular supplies
Suitable for service companies, construction organizations and technical departments that maintain equipment.
Request
Request a price
Fill out the form and attach the available data. If there is no technical documentation, a photo of the part, equipment model or material description is sufficient.
What helps calculate the price faster?
Equipment model, photo of the current kit, quantity, delivery country, material type and desired delivery time
Process
Clear path from request to delivery
1
Request analysis
We check the kit type, equipment model and operating conditions.
2
Data clarification
If necessary, we clarify the material, productivity, pressure, quantity and delivery region.
3
Price calculation
We prepare a commercial offer based on the configuration, quantity and delivery terms.
4
Supply
After approval, we prepare the kit for shipment according to the agreed terms.
Not sure if it's a good fit Rotor Stator Set D8-1.5?
Send the equipment model, a photo of the current part or the material type. We will help check a suitable solution.
